AIR QUICK COUPLER
LIGHTWEIGHT AND COMPACT AIR PIPING COUPLER
SMALL QUICK COUPLER - ONE TOUCH
Air Quick Coupler / Quick Disconnect Coupling / Quick Disconnector / Quick Connect / Quick Release Coupler (QRC) / Air Quick Coupling / Air Connectors & fitting / Quick coupling / Pneumatic couplings
|

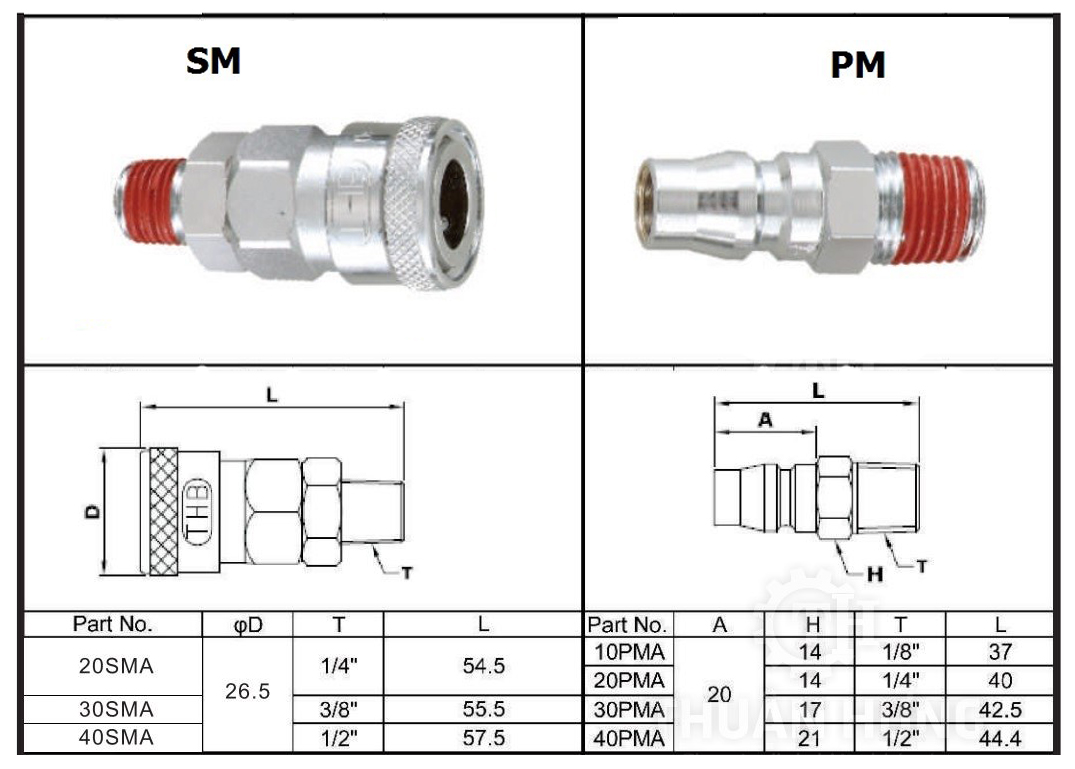

Part No. |
Size |
|

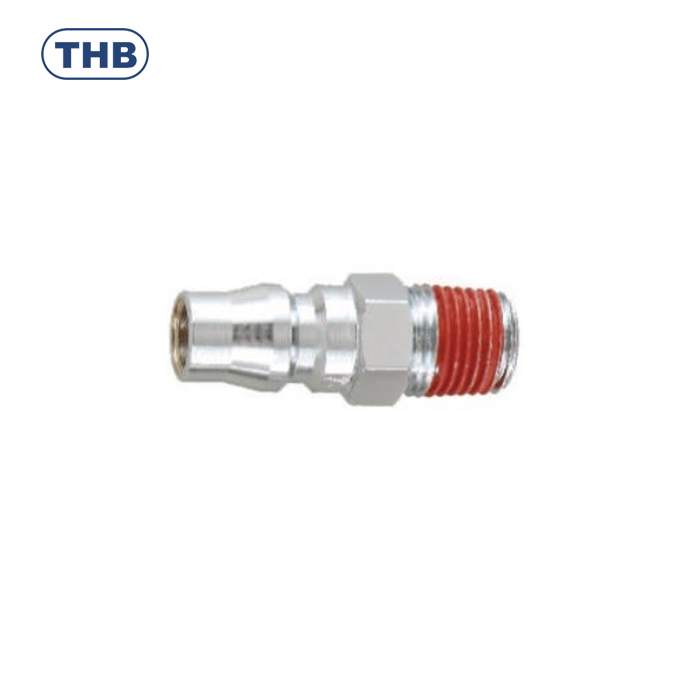

S50-20PMA |
1/4" PT |
FEATURES:
1.Small quick connector, light weight
2.Just push plug into socket for simple connection.
3.Chrome plated steel body for anti-corrosion.
4.High temperature resistance, resistance to chemical solvents
APPLICATION:
1. Pneumatic tools
2. Air piping
3. Air pressure equipment
SPECIFICATION:
|
Material |
Steel |
|
Thread |
PT |
|
Working Pressure |
218 PSI ( 15Bar / 1.5MPa ) |
|
Maximum Pressure |
290 PSI ( 20Bar / 2MPa ) |
|
Temperture Range |
-20°C~ +180°C |
|
Size |
1/4" PT |
|
1/4" HOSE & 6.5*10 HOSE |
